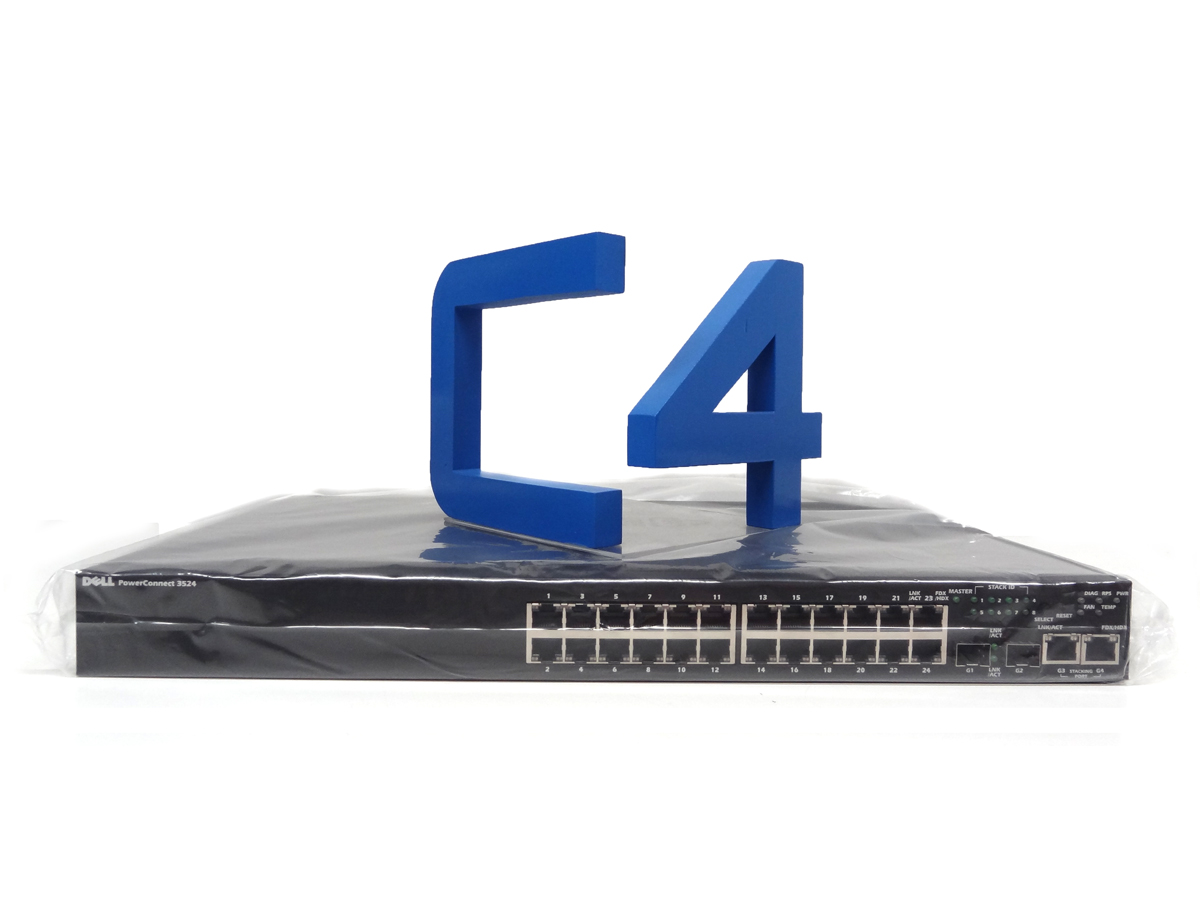

Dell PowerConnect 3524 Switch

Dell PowerConnect 3524 Switch in Dell Box - Ships today - K688K, P486K

No Review (Be the first to review)

Bulk pricing available. Contact Us for details.

1 year advanced replacement warranty.
< Back
1-Year Advanced Replacement Warranty

We offer a one-year advanced replacement warranty on all refurbished hardware. That means we’ll immediately send out a replacement instead of waiting for the failed hardware to return to us. That means less downtime and more peace of mind for you.

This warranty can be extended further with SmartCare.

Learn More About Smartcare
Eligible for SmartCare
< Back
SmartCare

SmartCare is Core 4’s full-service hardware maintenance program. Our operations center is open 24/7/365, and our team of skilled field engineers provides nationwide coverage, which means you can count on having support exactly where and when you need it, no matter what.

SmartCare drastically reduces your IT maintenance cost without sacrificing your existing or OEM service level.

Learn More

Price-matching available. If you find this item for a
lower price, let us know.

Description

Details

Dell Powerconnect Liquidation



Learn more about Core 4 <p><span style=All switches shipping same day if ordered before 4PM CST.

 Save money off MSRP on this Dell PowerConnect 3524  and even more when buying in bulk. Contact us directly for bulk pricing on the PowerConnect 3524.  Guaranteed best price on the web - if you find the PowerConnect 3524 for less, let us know and we will do our best to beat the price.

info@core4solutions.com or 1-855-55-CORE4

Port Attributes

  • 24 10/100BASE-T auto-sensing Fast Ethernet switching ports
    Additional 2 Copper GbE ports PLUS 2 optional Fiber GbE via SFP transceivers
    Integrated Copper GbE ports provide resilient stacking
    Auto-negotiation for speed, duplex mode and flow control
    Auto MDI/MDIX
    Port mirroring
    Broadcast storm control

Performance

  • Switch Fabric Capacity 12.8 Gb/s
    Forwarding Rate 9.5 Mpps
    Up to 8,000 MAC Addresses

Availability

  • Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link support
    Multiple Spanning Trees (IEEE 802.1s)
    External redundant power support with PowerConnect RPS-600 (sold separately)
    Virtual Cable Tester provided by Marvell™ for providing cable diagnostics
    Optical transceiver diagnostics

VLAN

  • VLAN support for tagging and port-based as per IEEE 802.1Q
    Up to 256 VLANs supported
    Dynamic VLAN with GVRP support
    Voice VLAN
    Protocol VLANs
    Private VLAN Edge Support
    802.1x Auto VLAN

Quality of Service

  • Layer 2 Trusted Mode (IEEE 802.1p tagging)
    Layer 3 Trusted Mode (DSCP)
    4 Priority Queues per Port

Multicast

  • Static IP multicast
    IGMP Querier for IP Multicast Support

Security

  • IEEE 802.1x based edge authentication
    IP and MAC based Access Control Lists (ACLs)
    Switch access password protection with advanced Password Management
    User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
    Port-based MAC Address alert and lock-down
    IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
    RADIUS and TACACS+ remote authentication for switch management access
    SSLv3 and SSHv2 encryption for switch management traffic
    Private VLAN Edge Support
    DHCP Snooping

Other Switching

  • Link Aggregation with support for up to 8 aggregated links per switch and up to 8 member ports per aggregated link (IEEE 802.3ad)
    LACP support (IEEE 802.3ad)
    DoD JITC IPv6 Certified

Management

  • Web-based management interface
    Industry-standard CLI accessible via Telnet or local serial port
    SNMPv1, SNMPv2c and SNMPv3 supported
    4 RMON groups supported (history, statistics, alarms and events)
    TFTP transfers of firmware and configuration files
    Dual firmware images on-board
    Multiple Configuration file upload/download supported
    Statistics for error monitoring and performance optimization including port summary tables
    BootP/DHCP IP address management supported
    LLDP-MED Support
    Syslog remote logging capabilities
    Temperature sensors for environmental monitoring
    Virtual Cable Tester by Marvell™ and fiber transceiver diagnostics for advanced troubleshooting

Chassis

  • Dimensions: 440 x 257 x 43.2 mm (W x D x H) 17.3 x 10.12 x 1.7 in (W x D x H)
    Height: 1U rack
    Weight: 11lbs (5kg)

Environmental Operating Conditions

  • Operating temperature: 0C - 45C
    Storage temperature: -20C to 70C
    Operating relative humidity: 10% - 90%
    Storage relative humidity: 10% - 95%
    Power supply: 100-240VAC, 50-60Hz voltage
Specifications

Specifications

SKU Dell PowerConnect 3524 Manufacturer Refurb
Manufacturer Dell
Condition Refurbished
Additional Part Numbers K688K, 469-3412, PC3524, 0P486K, P486K, 550978676, CN-0G636F, POWERCONNECT 3524
