New open box CISCO NM-2FE2W-V2 2 port 10/100 Ethernet with 2 WAN C. Save money off MSRP on this CISCO NM-2FE2W-V2 and even more when buying in bulk. Contact us directly for bulk pricing on the NM-2FE2W-V2.
This new open box CISCO NM-2FE2W-V2 is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO NM-2FE2W-V2. Guaranteed best price on the web - if you find the NM-2FE2W-V2 for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the NM-2FE2W-V2. info@core4solutions.com or 1-855-55-CORE4

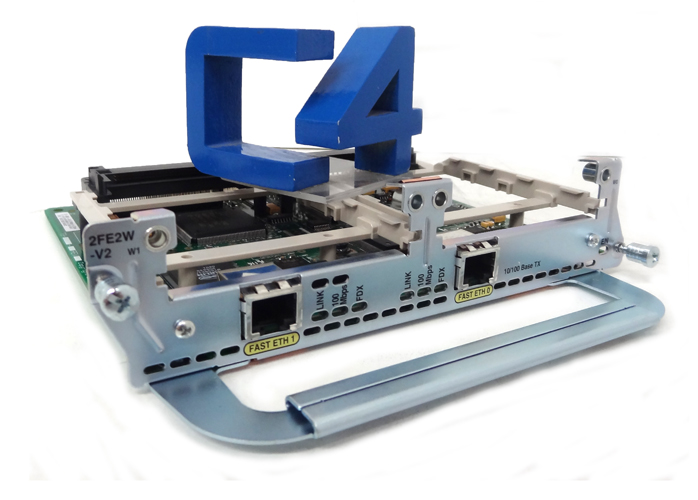

General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number NM-2FE2W-V2= Brand Name Cisco Product Name Ethernet with WAN Card Slot Network Module Marketing Information This mixed-media network module has two full/half duplex, auto-sensing 10/100 Ethernet ports and 2 WAN Interface Card (WIC) expansion slots, supporting all current WICs and VWICs. The 10/100 Ethernet connections are via an RJ-45 connector.
Product Type Network Module Technical Information Application/Usage Data Networking Interfaces/Ports Interfaces/Ports 2 x 10/100Base-TX LAN Interfaces/Ports Details 2 x RJ-45 10/100Base-TX Auto-sensing LAN Media & Performance Connectivity Media STP/UTP Data Transfer Rate 10 Mbps Ethernet Half/Full-duplex Data Transfer Rate 100 Mbps Fast Ethernet Half/Full-duplex I/O Expansions Expansion Slots 2 x WIC/VWIC Daughter Cards No Management & Protocols Management - Standard Management Information Base (MIBs)
Controls/Indicators Status Indicators - Token ring 4/16 speed indication
- Ethernet 10/100 Speed Indication
- Link and full Duplex LEDs
Power Description Power Consumption 15 W Maximum Environmental Conditions Temperature -13°F (-25°C) to 158°F (70°C) Non-operating Temperature 32°F (0°C) to 104°F (40°C) Operating Humidity 5% to 95% Relative Humidity Physical Characteristics Dimensions 1.6" Height x 7.1" Width x 7.2" Depth Weight (Approximate) 2.50 lb Minimum - Miscellaneous Additional Information - Support for up to 8Mb throughput on a WIC interface
- Full and half duplex Token Ring Support
- TDM enabled
- LAN interfaces have 10/100BaseT cables for Ethernet and STP/UTP cables for Token Ring
- LAN-to-LAN Routing
System Requirements Supported Platforms & Minimum IOS Versions:
- 3745 - 12.2(13)T
- 3725 - 12.2(13)T
- 3660 series - 12.2(13)T
- 2691 - 12.2(13)T
Minimum DRAM Memory Requirement:
- Cisco 2691: 64 MB
- Cisco 3620: 32 MB
- Cisco 3640: 32 MB
- Cisco 3660: 32 MB
- Cisco 3725: 128 MB
- Cisco 3745: 128 MB
Compatibility Supported Platforms:
- 3745
- 3725
- 3660 series
- 2691
- 3620
- 3640
Certifications & Standards - IEEE 802.3: 10Base-T
- IEEE 802.3u: 100Base-T
EMI:
- FCC Part 15 Class B
- CISPR 22 Class B
Regulatory Approvals:
- UL 1950
- Specifications
-
Specifications
SKU cisco nm-2fe2w-v2 nob Manufacturer CISCO Condition New Open Box Additional Part Numbers No EAN N/A Specification N/A Reviews N/A PDF Url N/A Image Gallery N/A - Reviews
-
