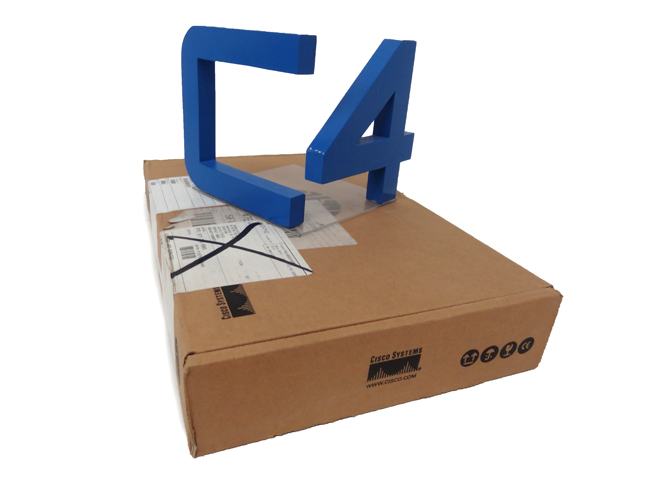

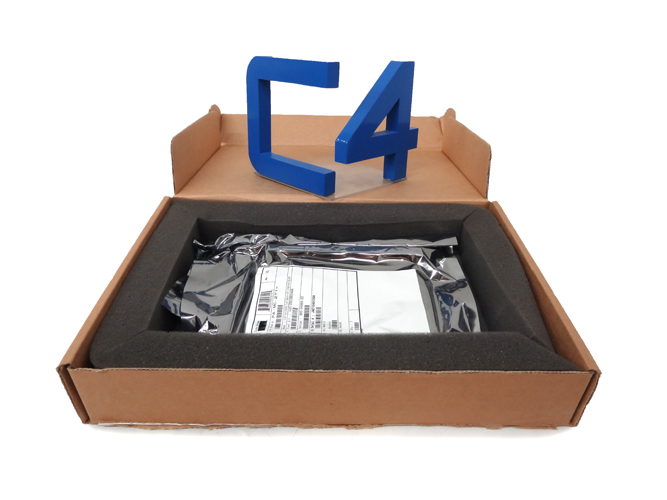

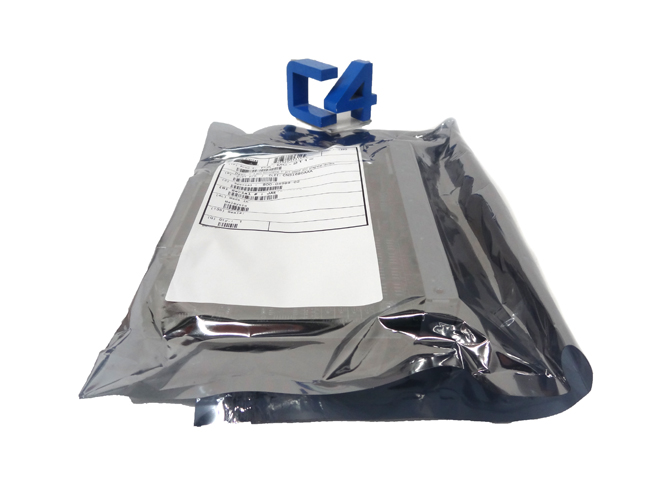

New open box CISCO PA-MC-2T1 2 PORT MULTICHANNEL T1 PORT ADPT. Save money off MSRP on this CISCO PA-MC-2T1 and even more when buying in bulk. Contact us directly for bulk pricing on the PA-MC-2T1.
This new open box CISCO PA-MC-2T1 is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO PA-MC-2T1. Guaranteed best price on the web - if you find the PA-MC-2T1 for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the PA-MC-2T1. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number PA-MC-2T1= Brand Name Cisco Product Model PA-MC-2T1 Product Name Multichannel T1 Port Adapter Product Type Port Adapter Technical Information Application/Usage Data Networking Interfaces/Ports Interfaces/Ports 2 x T1 WAN Interfaces/Ports Details 2 x T1 Network WAN Media & Performance Data Transfer Rate 1.54 Mbps T1 Management & Protocols Protocols PPP Protocols HDLC Protocols X.25 Protocols Frame Relay Protocols IP Protocols IPX Controls/Indicators Status Indicators - Enabled LED
- One status LED for each port
Miscellaneous Additional Information Key Features: - Up to eight independent T1 ports per card
- Channelized T1, fractional T1, full rate T1, and ISDN PRI supported
- Internal or network clocking selectable on each port
- Line and payload loopback capabilities
- Full bit error rate testing capabilities on any T1
- Alarm detection: alarm indication
- Support for Frame Relay, Point-to-Point Protocol (PPP), HDLC, SMDS DXI, ISDN PRI, X.25 connections
- Transmits and receives data bidirectionally at the rate of 1.536 Mbps for each T1 port
T1/DSX1 version features:- DS1 100-ohm interfaces with RJ-48c connectors
- D4 (Super Frame [SF]) and Extended Superframe (ESF) framing
- Alternate mark inversion (AMI) or binary 8-zero substitution (B8ZS) line encoding
- Data rate to 1.536 Mbps for each T1 port
- Internal and loop (recovered from network) clocking
- Full FDL support and FDL performance monitoring, according to configurable standard: ANSI T1.403 or AT&T TR 54016
- Selectable DSX-1 cable length in increments from 0 to 655 feet
- Selectable DS1 CSU line build-out: 0, -7.5, -15, and -22.5 dB
- Selectable DS1 CSU receiver gain: 26 or 36 dB
- DS1 line protection per UL1459/1950, FCC part 68
- Full support for DSX-1 Management Information Base (MIB, RFC 1406), including alarm detection and reporting
- DSX-1 MIB remote access supported
Compatibility - Cisco 7100
- Cisco 7200
- Cisco 7200VXR
- Cisco 7500/VIP2
Certifications & Standards T1/DSX1 Compliance: - ANSI T1.403
- US (UL 1950, 1459, T1)
- FCC Part 68
- Canada (C1950, T1)
- US (FCC part 15J Class A, T1)
- U.K. (BS6301, EN60950, EN41003)
- Canada (CSA C108.8 Class A, T1)
- Bellcore-AT&T Accunet (62411)
- ATT 54016
- Japan (VCCI Class 2, T1)
