- Description
-
Details

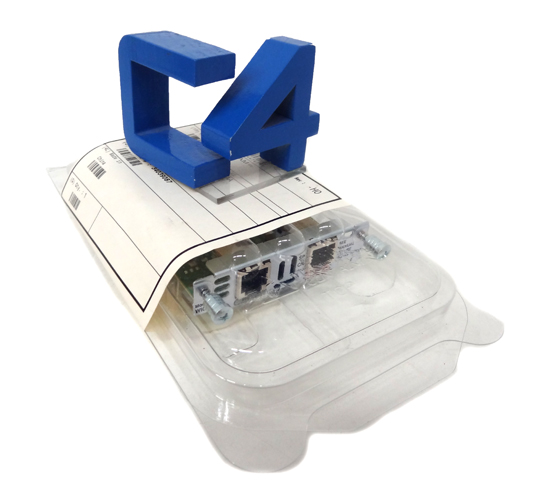

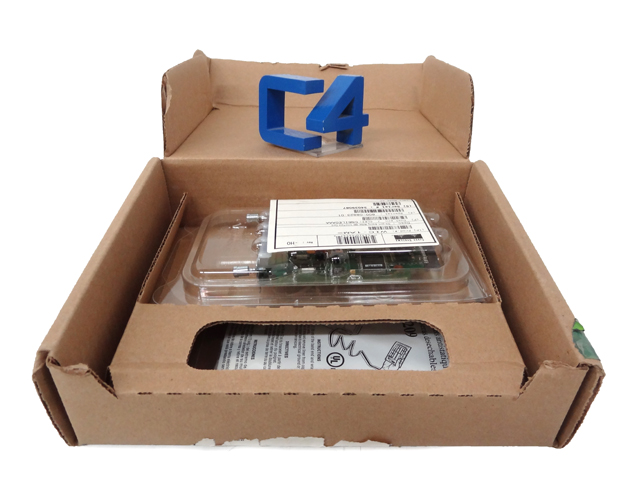

New open box CISCO WIC-1AM 1-PORT MODEM WAN INTERFACE CARD. Save money off MSRP on this CISCO WIC-1AM and even more when buying in bulk. Contact us directly for bulk pricing on the WIC-1AM.
This new open box CISCO WIC-1AM is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO WIC-1AM. Guaranteed best price on the web - if you find the WIC-1AM for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the WIC-1AM. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number WIC-1AM Brand Name Cisco Product Model WIC-1DSU-T1-V2 Product Name WAN Interface Card (WIC) Marketing Information One port analog modemWANInterface Card (Part number WIC-1AM) are now available for the award-winning Cisco 1700, 2600, 3600, and 3700 Series modular router platforms. The addition expands the already extensive range of WAN Interface Cards currently available for these routers. The interface cards provide cost-effective basic telephone service connectivity to allow remote router management, asynchronous Dial-on-Demand Routing (DDR) and dial backup, dial- and fax-out modem access, and low-density remote access server (RAS) services. Combined with the differentiated services delivered through Cisco IOS Software, the Cisco 1700, 2600, 3600, and 3700 Series routers offer customers best-of-breed scalability, flexibility, and investment protection, all in cost-effective, multifunctional platforms.
Product Type WAN Interface Card (WIC) Technical Information Application/Usage Wide Area Network Interfaces/Ports Interfaces/Ports 2 x Serial V.90 WAN Interfaces/Ports Details 2 x RJ-11 V.90 WAN Media & Performance Data Transfer Rate 14.40 Kbps Data Transfer Rate 33.60 Kbps Data Transfer Rate 56 Kbps Management & Protocols Management - One- port analog modem WAN Interface Card work with the following configuration and network management methods:
- CiscoWorks
- Telnet and console port command-line interface (CLI) configuration
Protocols PPP Protocols SLIP Protocols MPPP Protocols IPX Protocols TCP/IP Protocols ATCP Protocols TACACS+ Controls/Indicators Status Indicators - SP (high-speed connectivity for V.90 or K56flex)
- CN (carrier detect)
- OH (off-hook) status indicator
Environmental Conditions Temperature 32°F (0°C) to 104°F (40°C) Operating Temperature -4°F (-20°C) to 149°F (65°C) Storage Humidity 10% to 85% Non-condensing Relative Humidity Operating Humidity 5% to 95% Non-condensing Relative Humidity Non-operating Physical Characteristics Dimensions 0.8" Height x 3.1" Width x 4.4" Depth Weight (Approximate) 2.40 oz Miscellaneous Package Contents - One-port Analog Modem WAN Interface Card
- 3745 - 12.2(8)T
- 3725 - 12.2(8)T
- 3660 series - 12.2(2)XB
- 3640 - 12.2(2)XB
- 3620 - 12.2(2)XB
- 2691 - 12.2(8)T1
- 2600XM Series - 12.2(8)T1
- 2600 series - 12.2(2)XB
- 1760 - 12.2(4)YB
- 1751 - 12.1(5)YB
Additional Information - Auxiliary port compatibility
- V.90 (up to 56K) modem specification support when dialing out to a digital endpoint
- Fax-out capability at speeds up to 14.4K
- Multilink PPP
- Full platform support
- Retrofits into existing chassis
- Cisco IOS Software support
- Major modem vendor compatibility
- Fax vendor compatibility
- Current analog and digital modem network module compatibility
- Worldwide support for country-specific standards
- LAN-to-LAN Routing
- Dialup Remote Access
- Error-correcting link access protocols:
- V.42 Link Access Procedure for Modems (LAPM), MNP 2-4
- Compression protocols:
- V.42bis (includes MNP-5)
System Requirements - Maximum modem WAN Interface Cards per chassis:
- Cisco 1700: 2
- Cisco 2691: 5
- Cisco 3620: 4
- Cisco 2600, Cisco 2600XM: 4
- Minimum IOS Support:
- Cisco 1700: 12.2(4)
- Cisco 2600: 12.2(2)
- Cisco 2600XM: 12.2(8)T1
- Cisco 3600: 12.2(2)
- Cisco 3700: 12.2(8)
Compatibility - Cisco 1700
- Cisco 2600
- Cisco 3600
- Cisco 3700
Certifications & Standards - Carrier protocols:
- International Telecommunications Union (ITU) V.90
- K56Flex
- ITU V.23
- Bell 103
- ITU V.21
- ITU V.22
- Bell 212A
- ITU V.22bis
- ITU V.32
- ITU V.32bis
- V.32 turbo
- V.34
- V.34 bis
- NEBS compliance:
- Level 3
- Type II
- Type IV
- One- port analog modem WAN Interface Card work with the following configuration and network management methods:
