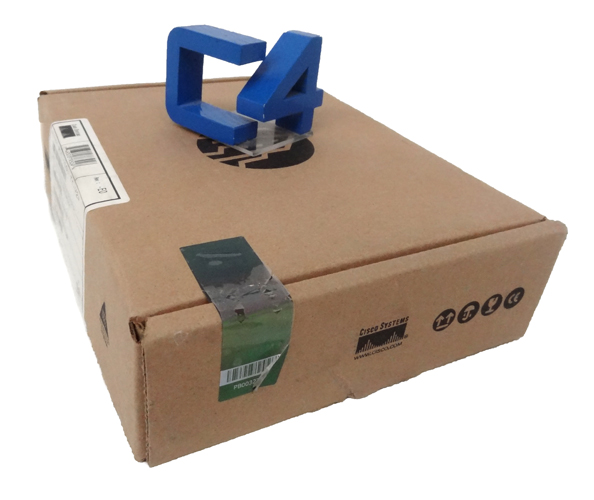

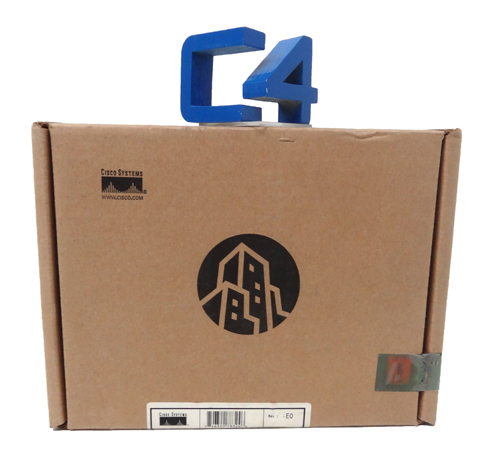

New factory sealed CISCO WIC-1DSU-T1-V2 1-Port T1/Fractional T1 DSU/CSU WAN. Save money off MSRP on this CISCO WIC-1DSU-T1-V2 and even more when buying in bulk. Contact us directly for bulk pricing on the WIC-1DSU-T1-V2.
This new factory sealed CISCO WIC-1DSU-T1-V2 is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO WIC-1DSU-T1-V2. Guaranteed best price on the web - if you find the WIC-1DSU-T1-V2 for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the WIC-1DSU-T1-V2. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number WIC-1DSU-T1-V2= Brand Name Cisco Product Name WAN Interface Card (WIC) Marketing Information The updated Cisco T1 data service unit/channel service unit (DSU/CSU) WAN Interface Card (WIC) is an integrated, fully managed DSU/CSU for T1 or fractional T1 service. The WIC-1DSU-T1-V2 is an updated version of the WIC-1DSU-T1, offering additional supported features with the same performance
Product Type WAN Interface Card (WIC) Technical Information Application/Usage Wide Area Network Interfaces/Ports Interfaces/Ports 1 x T1/FT1 WAN Interfaces/Ports Details 1 x RJ-45 T1/FT1 WAN Media & Performance Data Transfer Rate 56 Kbps to 64 Kbps Fast Ethernet Data Transfer Rate 1.54 Mbps FT1 Management & Protocols Management - Full management features:
- Configuration - Capability for remote configuration via Telnet from Cisco IOS CLI.
- Monitoring - Router and DSU/CSU are manageable as a single SNMP entity; extensive DSU/CSU statistics are provided by the Cisco IOS CLI.
- Troubleshooting - Extensive loopbacks (including manual button for network line loopback), bit error rate tester (BERT) test patterns, alarm counters, and performance reports, all of which are accessible from Cisco IOS CLI. LEDs for carrier detect, loopback, and alarm functions.
- Convenient Telnet or Secure Shell (SSH) Protocol connection to the router eliminates the need for out-of-band management of external DSUs/CSUs
Protocols HDLC Controls/Indicators Status Indicators - LEDs:
- CD (data carrier detect)
- LP (loopback)
- AL (alarm)
Environmental Conditions Temperature 32°F (0°C) to 107.6°F (42°C) Operating Temperature -4°F (-20°C) to 149°F (65°C) Storage Humidity 10% to 85% Non-condensing Operating Humidity 5% to 95% Non-condensing Non-operating Physical Characteristics Dimensions 0.8" Height x 3.1" Width x 4.8" Depth Weight (Approximate) 2.24 oz Miscellaneous Package Contents - 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card: Ver. 2
- 3745 - 12.3(1)
- 2600XM Series - 12.2(16)
- 1760 - 12.2(15)ZL
- 1751 - 12.2(15)ZL
- 1721 - 12.2(15)ZL
Additional Information - Benefits of an Integrated, Fully Managed Solution:
- Reduced Deployment, Management Time, and Costs:
- Flexibility and Investment Protection
- Single-Vendor Support
- Enhanced Reliability
- Consistency with WIC-1DSU-T1:
- Wet T1 Capable
- Short Cable Length Command
- Network Equipment Building Standards (NEBS)
- Line code:
- AMI
- B8ZS
- AMI ones density
- Forced/bit robbing (N X56)
- High-Level Data Link Control (HDLC) data inversion (N X64)
- Framing format:
- D4 (SF)
- ESF
- Output level (LBO) [dB0?]:
- 0 dB
- -7.5 dB
- -15 dB
- Input level:
- +1 dB0 to -24 dB0
- Diagnostics:
- Loopbacks:
- Network line loopback; user initiated
- Recessed push button for network line loopback; toggle on/off
- Network line loopback; telco initiated
- Network payload loopback
- Local date terminal equipment (DTE) loopback
- Remote line and payload loopback (codes: V.54 loop up, and loop down)
- Self-test:
- Self-test activated by user
- Test patterns (BERT):
- 1:2, 1:5, 1:8, 3:24, QRW, All 0s, All 1s, user-programmable 24-bit patterns
- Network (T1) alarms:
- Loss of network signal (red alarm)
- Loss of network frame (blue alarm) (AIS) from network
- Receive (yellow alarm) from network [UNCLEAR]
- Performance reports and error counters:
- Cyclic redundancy check (CRC)
- Bipolar violation (BPV)
- OOF [EXPAND?]
- Errored seconds
- Burst errored seconds
- Severely errored seconds
- Ft and Fs framing errors for SF framing
- FPS [EXPAND?] framing errors for ESF framing
- 24-hour history stored in 15-minute increments
- SNMP Traps:
- Generated in response to alarms
Compatibility - Router families supported 1700, 2600XMs, 2691, 3631, 3725, 3745, and ICS 7750
- Cisco 1701, 1710, 1711, and 1712 are fixed-configuration routers and do not support the WIC-1DSU-T1-V2. Also, the Cisco 1750 does not support this WIC
Certifications & Standards - Regulatory Compliance:
- FCC Part 15 Class B
- TIA/EIA-IS-968
- Industry Canada CS-03 Part II
- JATE Digital
- CAN/CSA-C22.2 No. 60950-00
- UL 60950-2000
- IEC/EN 60950
- TS001
- AS/NZS 3260
- NEBS Type I/III
- Standards:
- AT&T Pub 62411
- ANSI T1.403
- Standard MIB (MIB II)
- Cisco integrated DSU/CSU MIB
- RFC 1406
- Full management features:
