- Description
-
Details

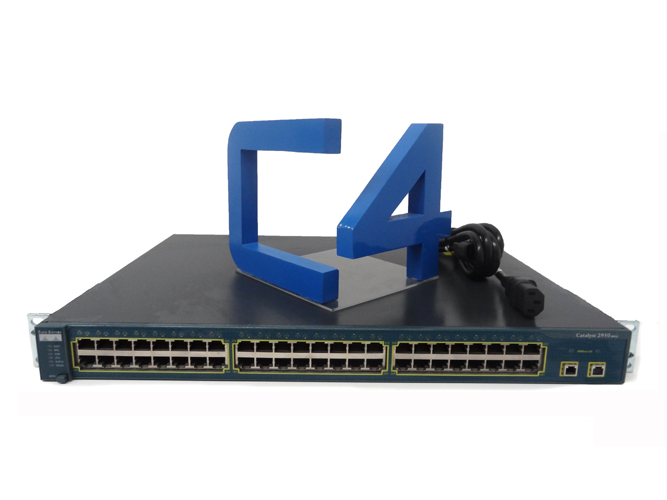

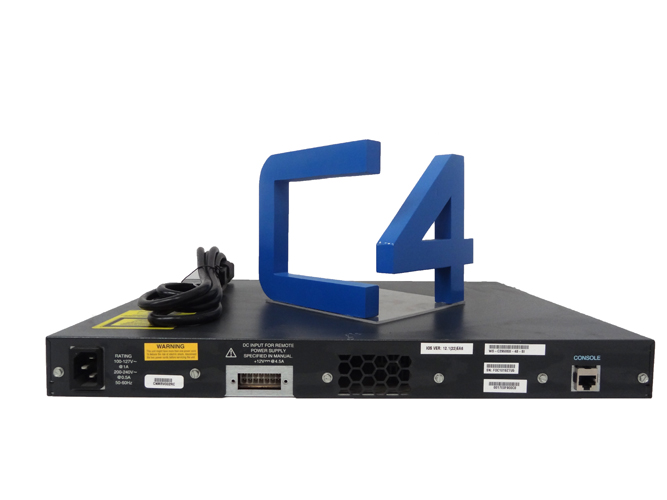

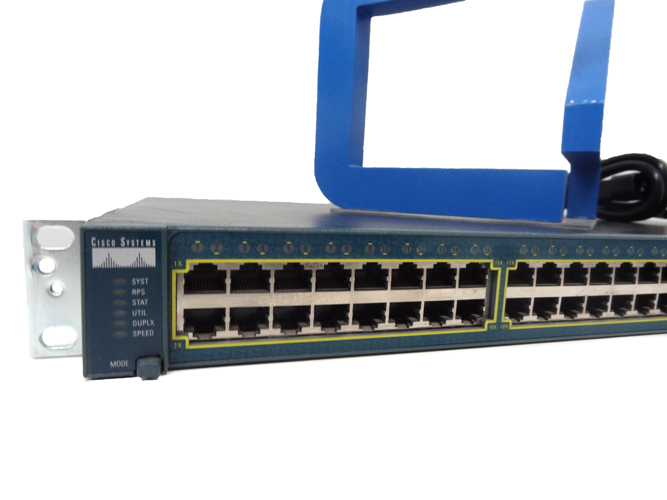

Refurbished CISCO WS-C2950-SW48-SI. Save money off MSRP on this CISCO WS-C2950-SW48-SI and even more when buying in bulk. Contact us directly for bulk pricing on the WS-C2950-SW48-SI.
This refurbished CISCO WS-C2950-SW48-SI is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this WS-C2950-SW48-SI. Guaranteed best price on the web - if you find the WS-C2950-SW48-SI for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the WS-C2950-SW48-SI. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number WS-C2950SX-48-SI Manufacturer Website Address http://www.cisco.com Brand Name Cisco Product Line Catalyst Product Series 2950 Product Model 2950SX-48 Product Name Catalyst 2950SX-48 Ethernet Switch Marketing Information The Cisco Catalyst 2950SX-48 switch is standalone, fixed-configuration, managed 10/100-Mbps switch providing basic workgroup connectivity for small to midsize networks. This wire-speed desktop switch come with Standard Image software features and offer Cisco IOS Software functions for basic data, voice, and video services at the edge of the network. Embedded is the Cisco Cluster Management Suite (CMS) software, which allows users to simultaneously configure and troubleshoot multiple Cisco Catalyst desktop switches using a standard Web browser. In addition, with the newly launched Cisco Express Setup, users now have the option to set up the switch through a Web browser, eliminating the need for more complex terminal emulation programs and knowledge of the command-line interface (CLI). Cisco Express Setup reduces the cost of deployment by enabling less-skilled personnel to set up switches quickly.
Product Type Ethernet Switch Interfaces/Ports Total Number of Network Ports 48 Uplink Port Yes Number of MT-RJ Ports 2 Number of Network (RJ-45) Ports 48 Port/Expansion Slot Details 48 x Fast Ethernet Network Port/Expansion Slot Details 2 x Gigabit Ethernet Uplink Media & Performance Media Type Supported Twisted Pair Media Type Supported Optical Fiber Twisted Pair Cable Standard Category 5 Fiber Optic Cable Standard 62.5/125 µm Fiber Optic Cable Standard 50/125 µm Fiber Mode Supported Multi-mode Ethernet Technology Fast Ethernet Network Technology 10Base-T Network Technology 10/100Base-TX Network Technology 1000Base-SX Network & Communication Layer Supported 2 Management & Protocols Manageable Yes Management - Command-line interface (CLI)
- SNMPv3
- Web browser management
- Cisco Cluster Management Suite (CMS) is Web software that is embedded in switch
- CiscoWorks
- RMON groups
- RTTMON
Memory Standard Memory 16 MB Flash Memory 8 MB Reliability MTBF 274916 Hour Power Description Input Voltage 110 V AC Input Voltage 220 V AC Power Source Power Supply Redundant Power Supply Yes Physical Characteristics Form Factor Rack-mountable Form Factor Wall Mountable Form Factor Desktop Height 1.7" Width 17.5" Depth 13.0" Weight (Approximate) 10.60 lb Miscellaneous Package Contents - Catalyst 2950 Desktop Switch Hardware Configuration Guide
- About the Catalyst 2950 Documentation
- AC power cord
- One RJ-45-to-DB-9 adapter cable
- Product ownership registration card
- Mounting kit containing these items:
- Four rubber feet for mounting the switch on a table, shelf, or desk
- Two 19-inch or 24-inch rack-mounting brackets
- Six number-8 Phillips flat-head screws for attaching the brackets to the switch
- Four number-8 Phillips truss-head screws for attaching the brackets to the switch
- Four number-12 Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One RPS connector cover and two number-4 pan-head screws
Additional Information - Acoustic noise: 48 dBa
Certifications & Standards - IEEE 802.1x support
- IEEE 802.3x: full duplex on 10BASE-T and 100BASE-TX ports
- IEEE 802.1D: Spanning-Tree Protocol
- IEEE 802.1p: class-of-service (CoS) prioritization
- IEEE 802.1Q: VLAN
- IEEE 802.3: 10BASE-T specification
- IEEE 802.3u: 100BASE-TX specification
- IEEE 802.3ad
- IEEE 802.3z: 1000BASE-X specification
Management:- BRIDGE-MIB
- CISCO-2900-MIB
- CISCO-BULK-FILE-MIB
- CISCO-CDP-MIB
- CISCO-CLASS-BASED-QOS-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-COPY-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-IMAGE-MIB
- CISCO-IPMROUTE-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-PRODUCTS-MIB
- CISCO-RTTMON-MIB
- CISCO-SMI
- CISCO-STACKMAKER-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TC
- CISCO-TCP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- IANAifType-MIB
- IF-MIB (RFC 1573)
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-CPU-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-MEMORY-MIB
- OLD-CISCO-SYSTEM-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- RFC1213-MIB (MIB-II)
- RFC1398-MIB (ETHERNET-MIB)
- RMON-MIB (RFC 1757)
- RS-232-MIB
- SNMPv2-MIB
- SNMPv2-SMI
- SNMPv2-TC
- TCP-MIB
- UDP-MIB
Safety certifications:- UL 60950/CSA 22.2 No. 950
- IEC 60950/EN 60950
- AS/NZS 3260, TS001
- CE Marking
Electromagnetic emissions certifications:- FCC Part 15 Class A
- EN 55022: 1998 (CISPR 22) Class A
- EN 55022: 1998 (CISPR 22)
- VCCI Class A
- AS/NZS 3548 Class A
- CE Marking
- CNS 13438 Class A
- CLEI Code
- MIC
- Specifications
-
Specifications
SKU CISCO WS-C2950-SX48-SI Refurbished Manufacturer CISCO Condition Refurbished Additional Part Numbers No EAN N/A Specification N/A Reviews N/A PDF Url N/A Image Gallery N/A - Reviews
-
