- Description
-
Details

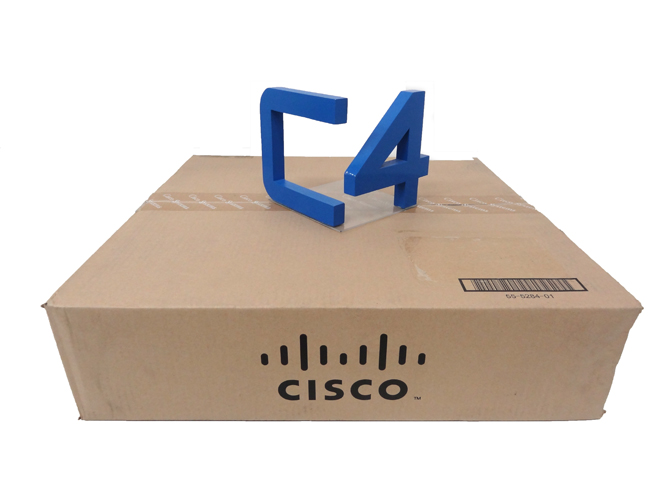

New factory sealed CISCO WS-C3560G-24TS-S Catalyst 3560 24 10/100/1000T + 4 S. Save money off MSRP on this CISCO WS-C3560G-24TS-S and even more when buying in bulk. Contact us directly for bulk pricing on the WS-C3560G-24TS-S.
This new factory sealed CISCO WS-C3560G-24TS-S is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO WS-C3560G-24TS-S. Guaranteed best price on the web - if you find the WS-C3560G-24TS-S for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the WS-C3560G-24TS-S. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number WS-C3560G-24TS-S Manufacturer Website Address http://www.cisco.com Brand Name Cisco Product Line Catalyst Product Series 3560 Product Model 3560G-24TS-S Product Name Catalyst 3560 Gigabit Ethernet Switch Marketing Information The Cisco Catalyst 3560 is a line of fixed-configuration, enterprise-class switch. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch offices configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services, such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing, while maintaining the simplicity of traditional LAN switching.
Product Type Ethernet Switch Features Interfaces/Ports Total Number of Network Ports 24 Number of Network (RJ-45) Ports 24 Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot Media & Performance Media Type Supported Twisted Pair Twisted Pair Cable Standard Category 5 Ethernet Technology Gigabit Ethernet Network Technology 10Base-T Network Technology 10/100/1000Base-T I/O Expansions Number of Total Expansion Slots 4 Expansion Slot Type SFP Number of SFP Slots 4 Network & Communication Layer Supported 3 Management & Protocols Manageable Yes Management - SNMPv1, SNMPv2c, and SNMPv3
- policy management
- Command-line interface (CLI)
- Resource Manager Essentials
- Web-based management
- Cisco Network Assistant Software
- Four thousand VLAN IDs are supported
- Management console port: RJ-45-to-DB-9 cable for PC connections
- Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN.
- Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
- Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).
- VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture.
- Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.
Memory Standard Memory 128 MB Memory Technology DRAM Flash Memory 32 MB Reliability MTBF 230700 Hour Power Description Input Voltage 110 V AC Input Voltage 220 V AC Physical Characteristics Height 1.7" Width 17.5" Depth 14.9" Weight (Approximate) 12.00 lb Miscellaneous Additional Information - Advanced IP routing
- Configurable up to 11,000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Acoustic Noise: 42dBa
- DC Input Voltages (RPS Input): 10.5A
- Power Rating: 0.10 kVA
- Telco: Common Language Equipment Identifier (CLEI) code
- Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports.
QoS and Control:
- Advanced QoS
- Granular Rate Limiting: The Cisco Committed Information Rate (CIR) function guarantees bandwidth in increments as low as 8 kbps.
Certifications & Standards IEEE: - IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.3 10BASE-T specification
- IEEE 802.3u 100BASE-TX specification
- IEEE 802.3ab 1000BASE-T specification
- IEEE 802.3z 1000BASE-X specification
Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
MIB:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-IP-STAT-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
Warranty Limited Warranty Lifetime Specification Interfaces/Ports Total Number of Network Ports 24 Number of Network (RJ-45) Ports 24 Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot Media & Performance Media Type Supported Twisted Pair Ethernet Technology Gigabit Ethernet Network Technology 10Base-T Network Technology 10/100/1000Base-T I/O Expansions Number of Total Expansion Slots 4 Expansion Slot Type SFP Network & Communication Layer Supported 3 Management & Protocols Manageable Yes Memory Standard Memory 128 MB Power Description Input Voltage 110 V AC Input Voltage 220 V AC Physical Characteristics Height 1.7" Width 17.5" Depth 14.9" Weight (Approximate) 12.00 lb Warranty Limited Warranty Lifetime - Specifications
-
Specifications
SKU cisco ws-c3560g-24ts-s new Manufacturer CISCO Condition New Factory Sealed Additional Part Numbers No EAN N/A Specification N/A Reviews N/A PDF Url N/A Image Gallery N/A - Reviews
-
