- Description
-
Details

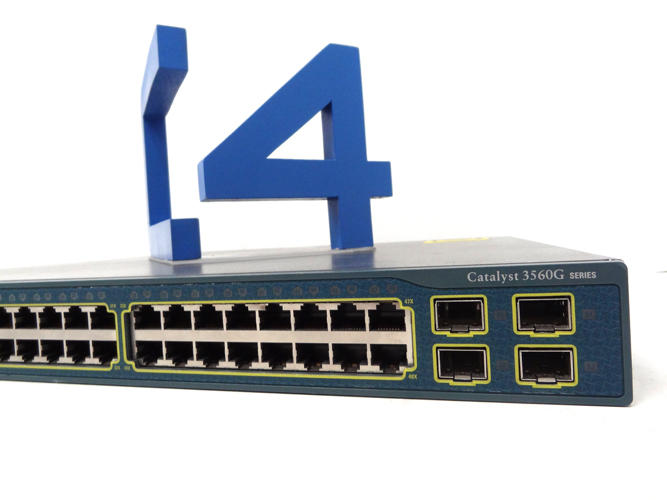

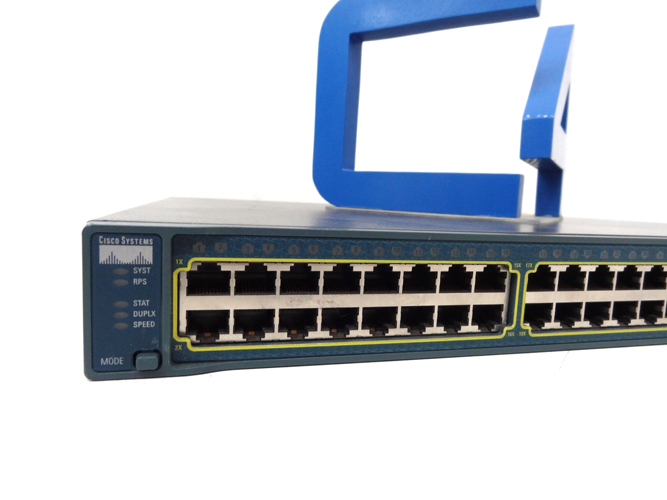

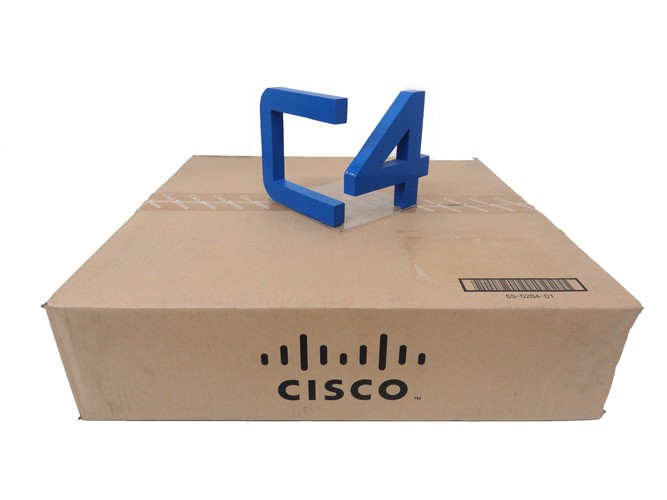

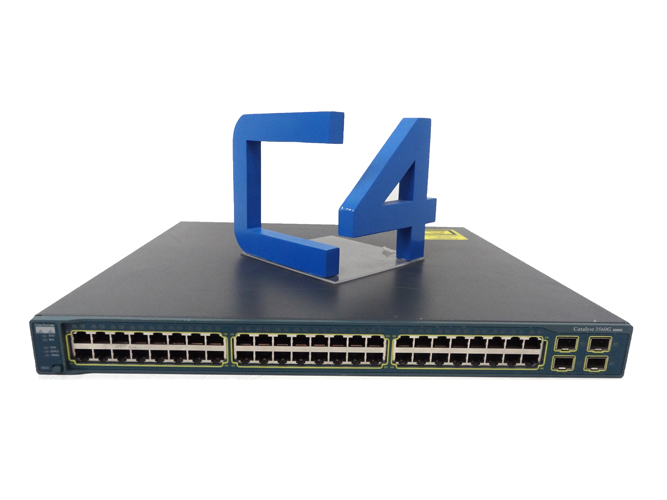

New factory sealed CISCO WS-C3560G-48TS-S Catalyst 3560 48 10/100/1000T + 4 S. Save money off MSRP on this CISCO WS-C3560G-48TS-S and even more when buying in bulk. Contact us directly for bulk pricing on the WS-C3560G-48TS-S.
This new factory sealed CISCO WS-C3560G-48TS-S is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO WS-C3560G-48TS-S. Guaranteed best price on the web - if you find the WS-C3560G-48TS-S for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the WS-C3560G-48TS-S. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number WS-C3560G-48TS-S Manufacturer Website Address http://www.cisco.com Brand Name Cisco Product Line Catalyst Product Series 3560 Product Model 3560G-48TS-S Product Name Catalyst 3560 Gigabit Ethernet Switch Marketing Information The Cisco Catalyst 3560 is a line of fixed-configuration, enterprise-class switch. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch offices configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services, such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing, while maintaining the simplicity of traditional LAN switching.
Product Type Ethernet Switch Features Interfaces/Ports Total Number of Network Ports 48 Number of Network (RJ-45) Ports 48 Port/Expansion Slot Details 48 x Gigabit Ethernet Network Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot Media & Performance Media Type Supported Twisted Pair Twisted Pair Cable Standard Category 5 Ethernet Technology Gigabit Ethernet Network Technology 10Base-T Network Technology 10/100/1000Base-T I/O Expansions Number of Total Expansion Slots 4 Expansion Slot Type SFP Number of SFP Slots 4 Network & Communication Layer Supported 4 Management & Protocols Manageable Yes Management - SNMPv1, SNMPv2c, and SNMPv3
- policy management
- Command-line interface (CLI)
- Resource Manager Essentials
- Web-based management
- Cisco Network Assistant Software
- CiscoWorks network-management software
- Four thousand VLAN IDs are supported
- Management console port: RJ-45-to-DB-9 cable for PC connections
- Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN.
- Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
- Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).
- VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture.
- Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.
Memory Standard Memory 128 MB Memory Technology DRAM Flash Memory 32 MB Reliability MTBF 173400 Hour Power Description Input Voltage 110 V AC Input Voltage 220 V AC Power Source Power Supply Redundant Power Supply Yes Physical Characteristics Height 1.7" Width 17.5" Depth 16.1" Weight (Approximate) 14.00 lb Miscellaneous Package Contents - Catalyst 3560 Switch
- Catalyst 3560 Switch Getting Started Guide
- Regulatory Compliance and Safety Information for the Catalyst 3560 Switch
- Product registration card
- AC power cord (AC-powered switches)
- One RJ-45-to-DB-9 adapter cable
Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets (also used for wall mounting)
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One redundant power system (RPS) connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)
Additional Information - Configurable up to 11,000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Acoustic Noise: 48 dBa
- DC Input Voltages (RPS Input): 10.5A
- Power Rating: 0.16 kVA
- Telco: Common Language Equipment Identifier (CLEI) code
- Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports.
QoS and Control:
- Advanced QoS
- Granular Rate Limiting: The Cisco Committed Information Rate (CIR) function guarantees bandwidth in increments as low as 8 kbps.
Certifications & Standards IEEE: - IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.3 10BASE-T specification
- IEEE 802.3u 100BASE-TX specification
- IEEE 802.3ab 1000BASE-T specification
- IEEE 802.3z 1000BASE-X specification
Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
MIB:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONFIG-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-IP-STAT-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
Warranty Limited Warranty Lifetime Specification Interfaces/Ports Total Number of Network Ports 48 Number of Network (RJ-45) Ports 48 Port/Expansion Slot Details 48 x Gigabit Ethernet Network Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot Media & Performance Media Type Supported Twisted Pair Ethernet Technology Gigabit Ethernet Network Technology 10Base-T Network Technology 10/100/1000Base-T I/O Expansions Number of Total Expansion Slots 4 Expansion Slot Type SFP Network & Communication Layer Supported 4 Management & Protocols Manageable Yes Memory Standard Memory 128 MB Power Description Input Voltage 110 V AC Input Voltage 220 V AC Physical Characteristics Height 1.7" Width 17.5" Depth 16.1" Weight (Approximate) 14.00 lb Miscellaneous Package Contents - Catalyst 3560 Switch
- Catalyst 3560 Switch Getting Started Guide
- Regulatory Compliance and Safety Information for the Catalyst 3560 Switch
- Product registration card
- AC power cord (AC-powered switches)
- One RJ-45-to-DB-9 adapter cable
Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets (also used for wall mounting)
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One redundant power system (RPS) connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)
Warranty Limited Warranty Lifetime - Specifications
-
