New factory sealed CISCO WS-C3750-24PS-S Catalyst 3750 24 10/100 PoE + 2 SFP. Save money off MSRP on this CISCO WS-C3750-24PS-S and even more when buying in bulk. Contact us directly for bulk pricing on the WS-C3750-24PS-S.
This new factory sealed CISCO WS-C3750-24PS-S is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO WS-C3750-24PS-S. Guaranteed best price on the web - if you find the WS-C3750-24PS-S for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the WS-C3750-24PS-S. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number WS-C3750-24PS-S Manufacturer Website Address http://www.cisco.com Brand Name Cisco Product Line Catalyst Product Series 3750 Product Model 3750-24PS Product Name Catalyst 3750-24PS Stackable Ethernet Switch Marketing Information The Cisco Catalyst 3750 Series switches are an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.
Product Type Ethernet Switch Interfaces/Ports Total Number of Network Ports 24 Number of Network (RJ-45) Ports 24 Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot Port/Expansion Slot Details 24 x Fast Ethernet Network Media & Performance Media Type Supported Twisted Pair Twisted Pair Cable Standard Category 5 Ethernet Technology Fast Ethernet Network Technology 10Base-T Network Technology 10/100Base-TX I/O Expansions Number of Total Expansion Slots 2 Expansion Slot Type SFP Number of SFP Slots 2 Network & Communication Layer Supported 3 Management & Protocols Manageable Yes Management - Command-line interface (CLI) for detailed configuration
- Cisco Cluster Management Suite (CMS) Software
- Web-based tool for quick configuration based on pre-set templates
- CiscoWorks for network-wide management
- SNMP v1, v2c, and v3
- Telnet

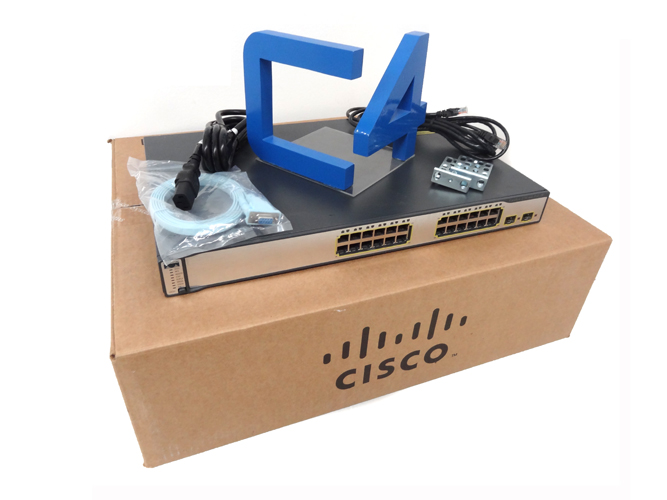

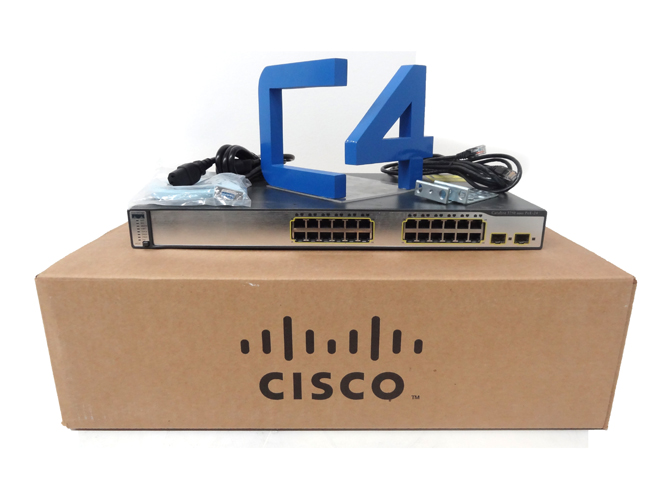

Memory Standard Memory 128 MB Flash Memory 16 MB Reliability MTBF 209170 Hour Power Description Input Voltage 110 V AC Input Voltage 220 V AC Power Source Power Supply Redundant Power Supply Yes Physical Characteristics Height 1.7" Width 17.5" Depth 11.8" Weight (Approximate) 11.30 lb Miscellaneous Package Contents - Catalyst 3750 Switch
- Catalyst 3750 Switch Hardware Installation Guide
- About the Catalyst 3750 Documentation flyer
- AC power cord
- One RJ-45-to-DB-9 adapter cable
- Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One RPS connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)
- CAB-STACK-50CM: Cisco StackWise 50CM Stacking Cable
Additional Information - 11,000 unicast routes
- Configurable up to 1000 IGMP groups and multicast routes
- Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports
- Acoustic Noise: 42 dB
- The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 468 Ethernet or Power over Ethernet 10/100 ports or 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100 and 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs
Certifications & Standards - IEEE 802.3u: 100BASE-TX specification
- IEEE 802.1s
- IEEE 802.3af
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX
- IEEE 802.1D: Spanning-Tree Protocol
- Management:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONF-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STACK-MIB
- CISCO-STACKMAKER-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- RMON I and II standards
- SNMPv1, SNMPv2c, SNMPv3
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
- Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
- Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
- Telco:
- CLEI code
- Specifications
-
Specifications
SKU cisco ws-c3750-24ps-s new Manufacturer CISCO Condition New Factory Sealed Additional Part Numbers No EAN No Specification No Reviews No PDF Url No Image Gallery N/A - Reviews
-
