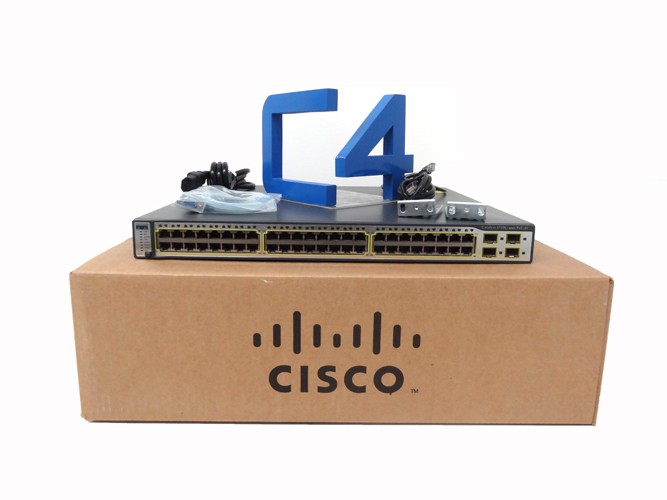

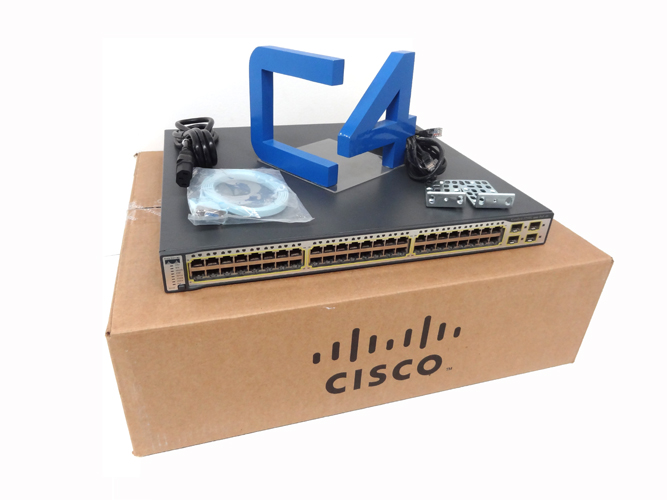

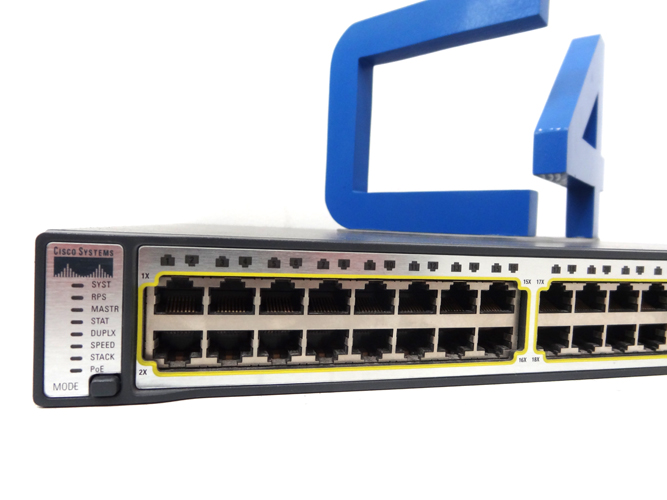

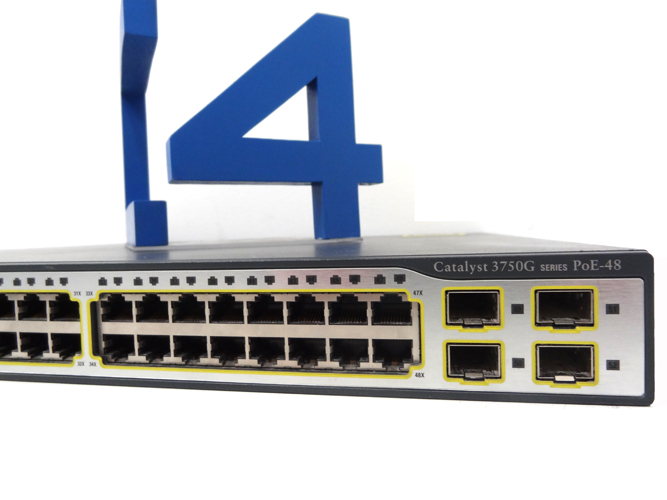

Refurbished CISCO WS-C3750G-48PS-S Catalyst 3750 48 10/100/1000T PoE +. Save money off MSRP on this CISCO WS-C3750G-48PS-S and even more when buying in bulk. Contact us directly for bulk pricing on the WS-C3750G-48PS-S.
This refurbished CISCO WS-C3750G-48PS-S is covered by the Core 4 Solutions 90 day warranty. We always attempt to ship your order same day, and will do the same on this CISCO WS-C3750G-48PS-S. Guaranteed best price on the web - if you find the WS-C3750G-48PS-S for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the WS-C3750G-48PS-S. info@core4solutions.com or 1-855-55-CORE4
General Information Manufacturer Cisco Systems, Inc Manufacturer Part Number WS-C3750G-48PS-S Manufacturer Website Address http://www.cisco.com Brand Name Cisco Product Line Catalyst Product Series 3750 Product Model 3750G-48PS Product Name Catalyst 3750G-48PS Stackable Gigabit Ethernet Switch Marketing Information The Cisco Catalyst 3750G-48PS Power over ethernet switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.
Product Type Ethernet Switch Interfaces/Ports Total Number of Network Ports 48 Number of Network (RJ-45) Ports 48 Port/Expansion Slot Details 48 x Gigabit Ethernet Network Port/Expansion Slot Details 4 x Gigabit Ethernet Expansion Slot Media & Performance Media Type Supported Twisted Pair Twisted Pair Cable Standard Category 5 Ethernet Technology Gigabit Ethernet Network Technology 10Base-T Network Technology 10/100/1000Base-T I/O Expansions Number of Total Expansion Slots 4 Expansion Slot Type SFP Number of SFP Slots 4 Network & Communication Layer Supported 4 Management & Protocols Manageable Yes Management - Telnet
- SNMP v1, v2c, and v3
- 4000 VLAN IDs are supported
- SPAN works across all the ports in a stack
- Cisco Works for network-wide management
- Cisco Network Assistant Software
- Cisco Cluster Management Suite (CMS) Software
- Command-line interface (CLI) for detailed configuration
- Web-based tool for quick configuration based on pre-set templates
- Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports
- Up to 1005 VLANs per switch or stack and up to 128 Spanning-Tree instances per switch are supported.
- Embedded Remote Monitoring (RMON) software agent supports 4 RMON groups (history, statistics, alarms, and events)
Memory Standard Memory 128 MB Memory Technology DRAM Flash Memory 32 MB Reliability MTBF 141005 Hour Power Description Input Voltage 110 V AC Input Voltage 220 V AC Power Source Power Supply Redundant Power Supply Yes Physical Characteristics Height 1.7" Width 17.5" Depth 16.1" Weight (Approximate) 15.50 lb Miscellaneous Package Contents - Catalyst 3750 Switch
- Catalyst 3750 Switch Hardware Installation Guide
- About the Catalyst 3750 Documentation flyer
- AC power cord
- One RJ-45-to-DB-9 adapter cable
Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips machine screws for attaching the brackets to a rack
- One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets
- One RPS connector cover (for wall mounting)
- Two Phillips pan-head screws (for attaching the RPS cover)
- Four Phillips truss-head screws (for wall-mounting brackets)
- CAB-STACK-50CM: Cisco StackWise 50CM Stacking Cable
Additional Information - 11,000 unicast routes
- Full dynamic IP routing
- Acoustic Noise: 52-58 dB
- Configurable up to 1000 IGMP groups and multicast routes
- The connector offers a 675W redundant power system (RPS) that supports up to 6 external network devices and provides power to 1 failed device at a time.
- Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports.
- The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs.
Certifications & Standards IEEE:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1s
- IEEE 802.3af
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.3ae
- IEEE 802.3x
- IEEE 802.1D
Management:
- BRIDGE-MIB
- CISCO-CDP-MIB
- CISCO-CLUSTER-MIB
- CISCO-CONF-MAN-MIB
- CISCO-ENTITY-FRU-CONTROL-MIB
- CISCO-ENVMON-MIB
- CISCO-FLASH-MIB
- CISCO-FTP-CLIENT-MIB
- CISCO-HSRP-MIB
- CISCO-HSRP-EXT-MIB
- CISCO-IGMP-FILTER-MIB
- CISCO-IMAGE-MIB
- CISCO-L2L3-INTERFACE-CONFIG-MIB
- CISCO-MAC-NOTIFICATION-MIB
- CISCO-MEMORY-POOL-MIB
- CISCO-PAGP-MIB
- CISCO-PING-MIB
- CISCO-PROCESS-MIB
- CISCO-RTTMON-MIB
- CISCO-STACK-MIB
- CISCO-STACKMAKER-MIB
- CISCO-STP-EXTENSIONS-MIB
- CISCO-SYSLOG-MIB
- CISCO-TCP-MIB
- CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
- CISCO-VLAN-MEMBERSHIP-MIB
- CISCO-VTP-MIB
- ENTITY-MIB
- ETHERLIKE-MIB
- IF-MIB
- IGMP-MIB
- IPMROUTE-MIB
- OLD-CISCO-CHASSIS-MIB
- OLD-CISCO-FLASH-MIB
- OLD-CISCO-INTERFACES-MIB
- OLD-CISCO-IP-MIB
- OLD-CISCO-SYS-MIB
- OLD-CISCO-TCP-MIB
- OLD-CISCO-TS-MIB
- OSPF-MIB (RFC 1253)
- PIM-MIB
- RFC1213-MIB
- RFC1253-MIB
- RMON-MIB
- RMON2-MIB
- RMON I and II standards
- SNMPv1, SNMPv2c, SNMPv3
- SNMP-FRAMEWORK-MIB
- SNMP-MPD-MIB
- SNMP-NOTIFICATION-MIB
- SNMP-TARGET-MIB
- SNMPv2-MIB
- TCP-MIB
- UDP-MIB
Safety Certifications:
- UL to UL 60950, Third Edition
- C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition
- TUV/GS to EN 60950:2000
- CB to IEC 60950 with all country deviations
- NOM to NOM-019-SCFI
- CE Marking
Electromagnetic Emissions Certifications:
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22)
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS 3548 Class A
- CE
- CNS 13438 Class A
- MIC
Telco:
- CLEI code
- Specifications
-
