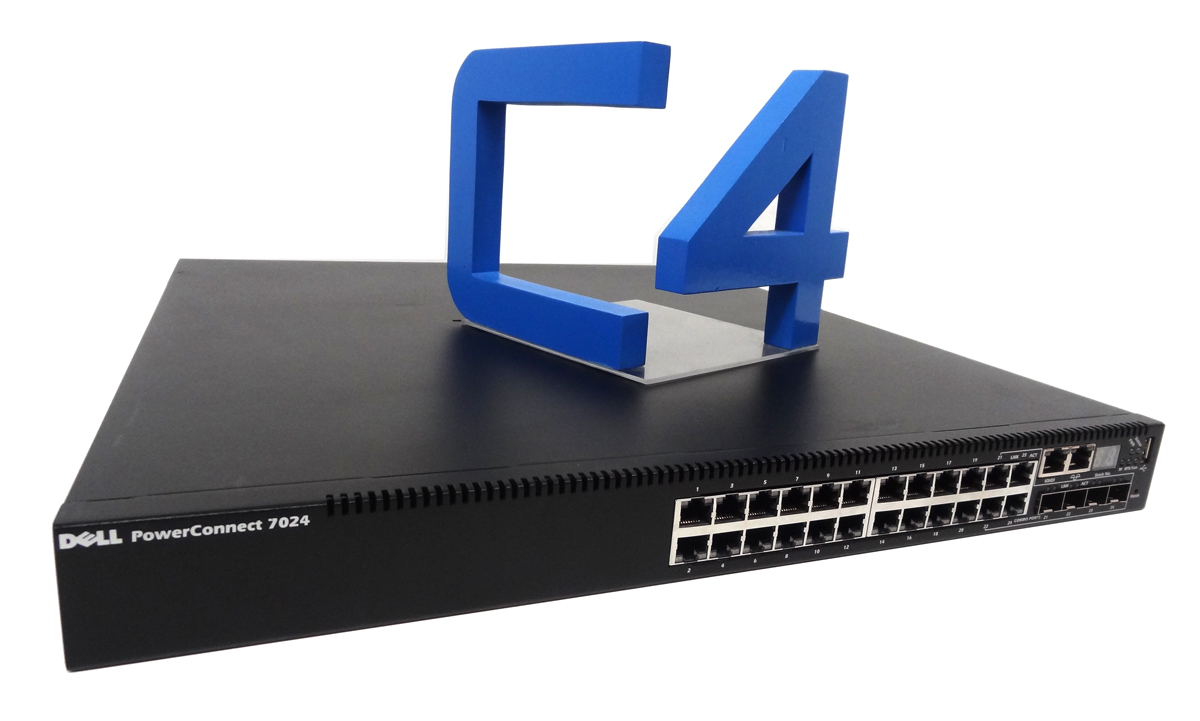

Dell PowerConnect 7024 Ethernet Switch Refurb

Bulk pricing available. Contact Us for details.

1 year advanced replacement warranty.
1-Year Advanced Replacement Warranty

We offer a one-year advanced replacement warranty on all refurbished hardware. That means we’ll immediately send out a replacement instead of waiting for the failed hardware to return to us. That means less downtime and more peace of mind for you.

This warranty can be extended further with SmartCare.

Learn More About Smartcare
Eligible for SmartCare
SmartCare

SmartCare is Core 4’s full-service hardware maintenance program. Our operations center is open 24/7/365, and our team of skilled field engineers provides nationwide coverage, which means you can count on having support exactly where and when you need it, no matter what.

SmartCare drastically reduces your IT maintenance cost without sacrificing your existing or OEM service level.

Learn More

Price-matching available. If you find this item for a
lower price, let us know.

Description

Details

Refurbished Dell PowerConnect 7024 Switch. Save money off MSRP on this Dell PowerConnect 7024 and even more when buying in bulk. Contact us directly for bulk pricing on the PowerConnect 7024.

Guaranteed best price on the web - if you find a PowerConnect 7024 for less, let us know and we will do our best to beat the price. Contact us directly for deeper discounts on the PowerConnect 7024. info@core4solutions.com or 1-855-55-CORE4

Port Attributes

  • 24 10/100/1000BASE-T auto-sensing Gigabit Ethernet switching ports
    4 Combo (SFP or 10/100/1000) Gigabit Ethernet ports;
    Two 10Gb/Stacking Module Bays
    Optional 10Gb Modules: Dual-Port 10 Gigabit Ethernet uplink modules with SFP+ or 10GBASE-T
    Optional 64Gbps Stacking module
    USB Port – Allows for file import/export locally
    Auto-negotiation for speed, duplex mode and flow control
    Auto MDI/MDIX
    Port mirroring
    Broadcast storm control
    EEE (IEEE802.3az) per port settings
    Port Profile support
    iSCSI Auto Config

Performance

  • Switch Fabric Capacity 176.0 Gbps
    Forwarding Rate 125 Mpps
    Up to 32,000 MAC Addresses

Availability

  • Spanning Tree (IEEE 802.1D), Multiple Spanning Tree (MSTP) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
    Spanning Tree optional features – STP root guard, BPDU guard, BPDU filtering
    Supports Virtual Redundant Routing Protocol (VRRP)
    Dual Image Support
    Configuration file upload and download (USB supported)
    Switch Auditing support
    sFlow support
    External redundant power support with PowerConnect RPS-720 (sold separately)
    Cable diagnostics via Virtual Cable Tester
    SFP/SFP+ transceiver diagnostics

    High availability and redundancy
    HA stacking and redundant power supply option


    Stacking capability

    Up to 12 switches managed as a single unit, including with the PowerConnect M6348 I/O Modules

    Energy conscious

    High-efficiency 80 PLUS-certified power supplies in a system designed to meet Energy Efficient Ethernet (EEE) standards, helping reduce power requirements during low link use

Routing

  • RFC 826 Ethernet ARP
    RFC 894 Transmission of IP Datagrams over Ethernet Networks
    RFC 919 Broadcast Ethernet Frames
    RFC 922 Broadcast Ethernet Frames with Subnets
    RFC 920 Domain Requirements
    RFC 950 Internet Standard subnet procedure
    RFC 1042 A Standards for transmission of IP datagrams over IEEE 802 Networks
    RFC 1071 Computing the Internet Checksum
    RFC 1123 Requirements for Internet Hosts
    RFC 1141 Incremental Updating of the Internet Checksum
    RFC 2131 DHCP Relay 802.1p user priority (outer and/or inner VLAN tag)
    RFC 1112 Host Extensions for IP Multicasting (IGMPv1)
    RFC 2236 IGMPv2
    RFC 3376 Internet Group Management Protocol, Version 3 (IGMPv3) Routing
    RFC 1027 Using ARP to implement Transparent Subnet Gateways (Proxy ARP)
    RFC 1256 ICMP Router Discovery Messages
    RFC 1765 OSPF Database Overflow
    RFC 1812 Requirements for IP Version 4 Routers
    RFC 2082 RIP-2 MD5 Authentication
    RFC 2131 DHCP Relay
    RFC 2328 OSPF Version 2
    RFC 2370 The OSPF Opaque LSA Option
    RFC 2453 RIP v2
    RFC 3046 DHCP Relay Agent Information Option
    RFC 3101 The OSPF “Not So Stubby Area” (NSSA) Option
    RFC 3137 OSPF Stub Router Advertisement
    RFC 3768 VRRP Route Redistribution across RIP, OSPF and BGP VLAN Routing
    RFC 3623 Graceful OSPF Restart
    RFC 5187 OSPFv3 Graceful Restart

    Routing MIBS (Available Through Management Module)
    RFC 1724 RIP v2 MIB Extension
    RFC 1850 OSPF MIB
    RFC 2096 IP Forwarding Table MIB
    RFC 2787 VRRP MIB
    FASTPATH Enterprise MIB supporting Routing features

    IPv6 Routing
    RFC 1981 Path MTU for IPv6

    RFC 2460 IPv6 Protocol Specification
    RFC 2461 Neighbor Discovery
    RFC 2462 Stateless Autoconfiguration
    RFC 2464 IPv6 over Ethernet
    RFC 2711 IPv6 Router Alert
    RFC 2740 OSPFv3
    RFC 3056 Connection of IPv6 Domains via IPv4 Clouds
    RFC 3315 DHCPv6 (stateless + relay)
    RFC 3513 Addressing Architecture for IPv6
    RFC 3484 Default Address Selection for IPv6
    RFC 3493 Basic Socket Interface for IPv6
    RFC 3542 Advanced Sockets API for IPv6
    RFC 3587 IPv6 Global Unicast Address Format
    RFC 3736 Stateless DHCPv6
    RFC 4213 Basic Transition Mechanisms for IPv6
    RFC 4291 Addressing Architecture for IPv6
    RFC 4443 ICMPv6
    FASTPATH IPv6 Routing MIBs:
    RFC 2465 IPv6 MIB
    RFC 2466 ICMPv6 MIB

    Layer 3 Routing Protocols
    Static routes

    Routing Information Protocol (RIP) v1/v2
    Open Shortest Path First (OSPF) v1/v2/v3
    Classless Inter-Domain Routing (CIDR)
    Internet Control Message Protocol (ICMP)
    ICMP Router Discover Protocol (IRDP)
    Virtual Redundant Routing Protocol (VRRP)
    Address Resolution Protocol (ARP)
    Internet Group Management Protocol (IGMP) v2
    Distance-Vector Multicast Routing Protocol (DVMRP)
    DHCP – Helper/Relay

    Layer 3 Routing Performance
    Up to 12,000 dynamic routes supported in IPv4 environments (8,000 in mixed IPv4/IPv6 environments)

    Up to 512 RIP Routing Interfaces
    Up to 128 OSPF Routing Interfaces; up to128 OSPF Areas; up to 128 Routing Interfaces per OSPF Area; up to 8K routes for ECMP Routing; up to 4 next hops per ECMP
    Up to 1K VLAN Routing Interfaces
    Up to 2K Multicast Forwarding Entries
    Up to 6144 ARP entries; Up to 2560 NDP entries

VLAN

  • VLAN support for tagging and port-based as per IEEE 802.1Q; protocol-based VLANs
    Up to 1000 VLANs supported
    Dynamic VLAN with GVRP support
    Protocol based VLANs
    802.1x Auto VLAN

Quality of Service

  • Layer 2 Trusted Mode (IEEE 802.1p tagging)
    Layer 3 Trusted Mode (DSCP)
    Layer 4 Trusted Mode (TCP/UDP)
    8 Priority Queues per Port
    RED/WRED
    Advanced Mode using Layer 2/3/4 flow-based Policies, including metering/rate limiting, marking and bandwidth guarantees; up to 100 ACLs can be used for QoS flow identification via Class-maps;
    Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling
    Port-based QoS Services Mode; Flow-based QoS Services Mode, IPv4 and IPv6 support

Multicast

  • Dynamic Multicast Support – up to 256 Multicast groups supported in IGMP Snooping or static Multicast
    IGMP Snooping v1/v2
    IGMP Snooping Querier

Security

  • Time Controlled ACLs
    ACL Logging
    Up to 100 Access Control Lists (ACLs) supported;
    Up to 1K rules per ACL, 8K rules total (7K Ingress rules, 1K Egress rules)
    Switch access password protection
    Optional strong password enforcement
    User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
    Port-based MAC Address alert and lock-down
    IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
    RADIUS and TACACS+ remote authentication for switch management access
    SSLv3 and SSHv2 encryption for switch management traffic
    DHCP Snooping
    Management access filtering via Management Access Profiles
    IEEE 802.1x based edge authentication, 802.1x Monitor Mode (logging without enforcement)
    Dynamic ARP Inspection

Other Switching

  • iSCSI optimization and monitoring
    Auto-detection and configuration for Dell EqualLogic arrays
    Egress rate shaping and Ingress Rate limiting
    Link Aggregation with support for up to 48 link aggregation groups (LAGs) per switch (support up to 96 in future releases) and up to 8 member ports per LAG (IEEE 802.3ad)
    LACP support (IEEE 802.3ad)
    Supports jumbo frames up to 9K bytes
    IPv6 Host Support
    IPv4 Support
    Support for unicast NLB (multicast NLB not supported)

Management

  • Industry-standard CLI accessible via Telnet, Out-of-Band Ethernet, SSH, or local console (RJ45 Yost)
    Robust HTTP GUI Management
    sflow
    Management IP Address Conflict Notification
    SNMPv1, SNMP v2c, SNMP v3 supported
    USB Drive Support: Auto-Configuration, Firmware
    4 RMON groups supported (history, statistics, alarms and events)
    HTTP and TFTP transfers of firmware and configuration files
    Dual Firmware images on-board
    Multiple Configuration file upload/download supported
    Statistics for error monitoring and performance optimization including port summary tables
    BootP/DHCP IP address management supported
    DHCP Auto Configuration, DHCP Auto Image Upgrade
    LLDP-MED Support
    SNTP Support
    Layer 3 Traceroute
    Telnet Client
    Syslog remote logging capabilities
    iSCSI Auto Configuration

Chassis

  • 440 x 460 x 44 mm (W x D x H)
    17.32 x 18.1 x 1.73 in (W x D x H)
    Approximate weight: 6.35 kg / 14 lb
    80 PLUS certified, high-availability power supplies with multi-speed fan operation

Hardware

  • 1GB of CPU DRAM
    64MB of Flash Memory
    32Mb Packet Buffer Memory

MIB Support

  • RFC 1213 MIB II
    RFC 1215 Standard Traps
    RFC 1286 Bridge MIB
    RFC 1442 SMIv2 (SNMPv2 MIB)
    RFC 1451 Manager-to-Manager MIB
    RFC 1492 TACACS+
    RFC 1493 Definitions of Managed Objects for Bridges
    RFC 1573 Evolution of Interfaces
    RFC 1643 Etherlike MIB
    RFC 1757 Remote Network Monitoring (RMON) MIB
    RFC 1907 SNMP v2 MIB
    RFC 2011 Internet Protocol (IP) MIB using SMIv2
    RFC 2012 Transmission Control Protocol (TCP) MIB using SMIv2
    RFC 2013 User Datagram Protocol (UDP) MIB using SMIv2
    RFC 2233 Interfaces Group using SMIv2
    RFC 2618 RADIUS MIB
    RFC 2665 Ethernet-like Interface Types MIB
    RFC 2666 Identification of Ethernet Chip sets
    RFC 2674 MIB for Bridge with Traffic Classes, Multicast Filtering and VLAN Extension (IEEE802.1p/q MIB)
    RFC 2737 ENTITY-MIB
    RFC 2819 RMON MIB
    RFC 2863 Interface Evolution

Standards Supported

  • IEEE 802.1D
    IEEE 802.1Q
    IEEE 802.1p
    IEEE 802.1v
    IEEE 802.1w
    IEEE 802.1x
    IEEE 802.2
    IEEE 802.3
    IEEE 802.3I
    IEEE 802.3u
    IEEE 802.3x
    IEEE 802.3z
    IEEE 802.ab
    IEEE 802.3ac
    IEEE 802.3ad
    IEEE 802.3ae
    IEEE 802.3az

Peripherals

  • Peripheral Products (sold separately)
    64Gbps Stacking/CX-4 (10GbE) Module - Includes 1m Stacking Cable; Supports Dell stacking cables/CX-4 cables
    Uplink Module for dual SFP+ 10GbE
    Uplink Module for dual 10GBASE-T
    Dell SFP Transceivers (SX, LX)
    Dell SFP+ Transceivers (SR, LR, LRM, twinax)
    RPS-720 Redundant Power Supply



Environmental

Operating Temperature: 0º C to 45º C
Storage Temperature: -20º C to 70º C
Operating Relative Humidity: 10% to 90% non-condensing
